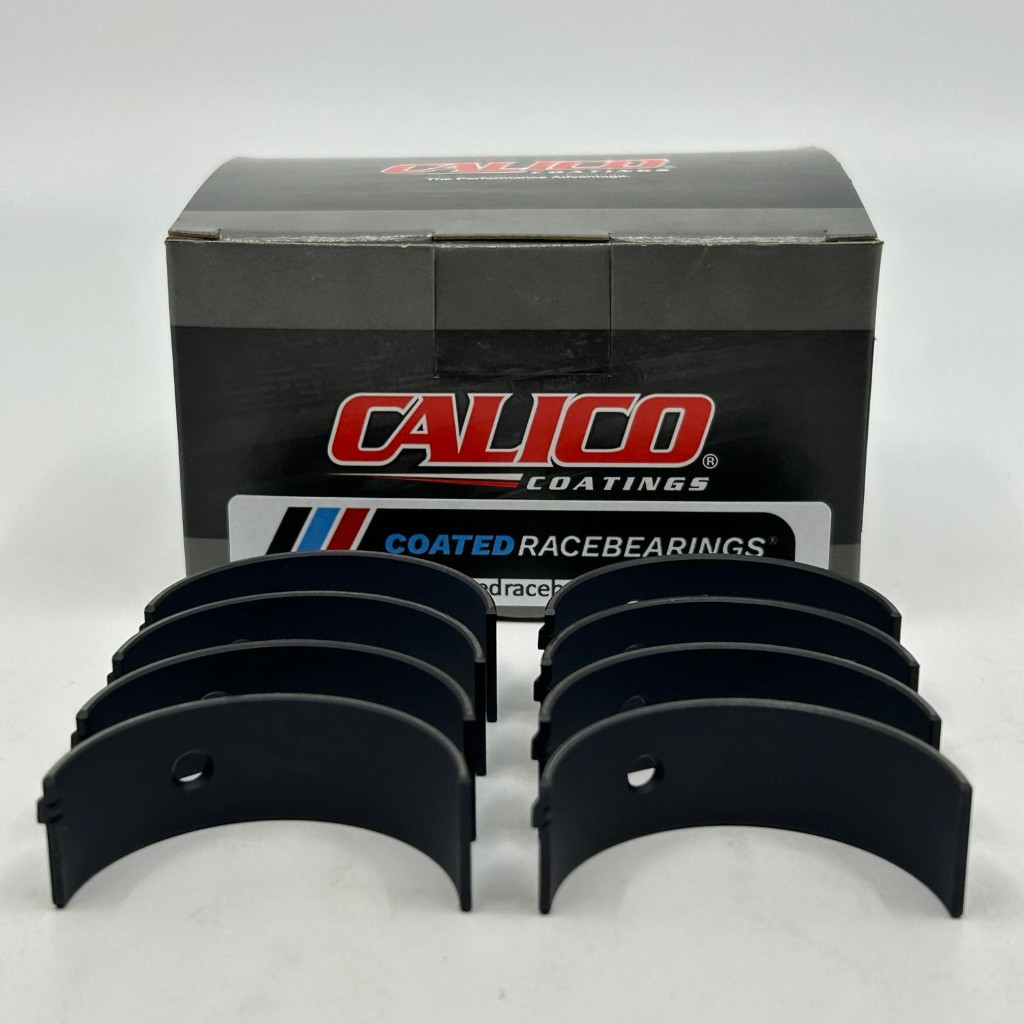

Opel X16XE & Z16XE, Std. Diameter, HX-serie with 0.025mm (0.001”) extra clearance
CHF 166.41 inkl. MwSt.
Material:
F781
Motorcode:
12NV, 12NZ, 12ST, 13N, 13NB, 13S, 13SB, 13SB, 14NV, 14SE, 16NZR, 16SV, A6LEL, A16LER, A16LES, A16LET, B16LER, B16LES, C12NZ, C13NZ, C14NZ, C14SE, C14SEL, C16LZ, LZ2, C16NZ, C16SE, C16SEI, C16SEL, C16XE, E16NZ, E16SE, X12SZ, X14NZ, X14SZ, X14XE, X16SZ, X16SZR, X16XE, X16XEL, X18XE1, Y16XE, Z14XE, Z16LEL, Z16LER, Z16LET, Z16SE, Z16XE, Z16XEP, Z16XER, Z16YNG, Z18XE, Z18XEL, Z18XER
Half type:
Identical halves
Max overall Length:
16.63 mm / 0.6547 in
Max. Std. Shaft size:
42.987 mm / 1.6924 in
Max. Std. Tunnel size:
46.013 mm / 1.8115 in
Max. wall at crown:
1.482 mm / 0.0583 in
Min. Std. Shaft size:
42.971 mm / 1.6918 in
Min. Std. tunnel size:
46 mm / 1.8110 in
